Overview
In my second semester of Structural Systems, I was a member of a group that designed a minimal weight balsa column to be tested under a hydraulic press to test the compressive stress of the wood.
My role on this team of four was 3D design + modeling, calculations, and construction support. This project allowed my love for math and science to flourish.
3D Model of Final Design
Design Process

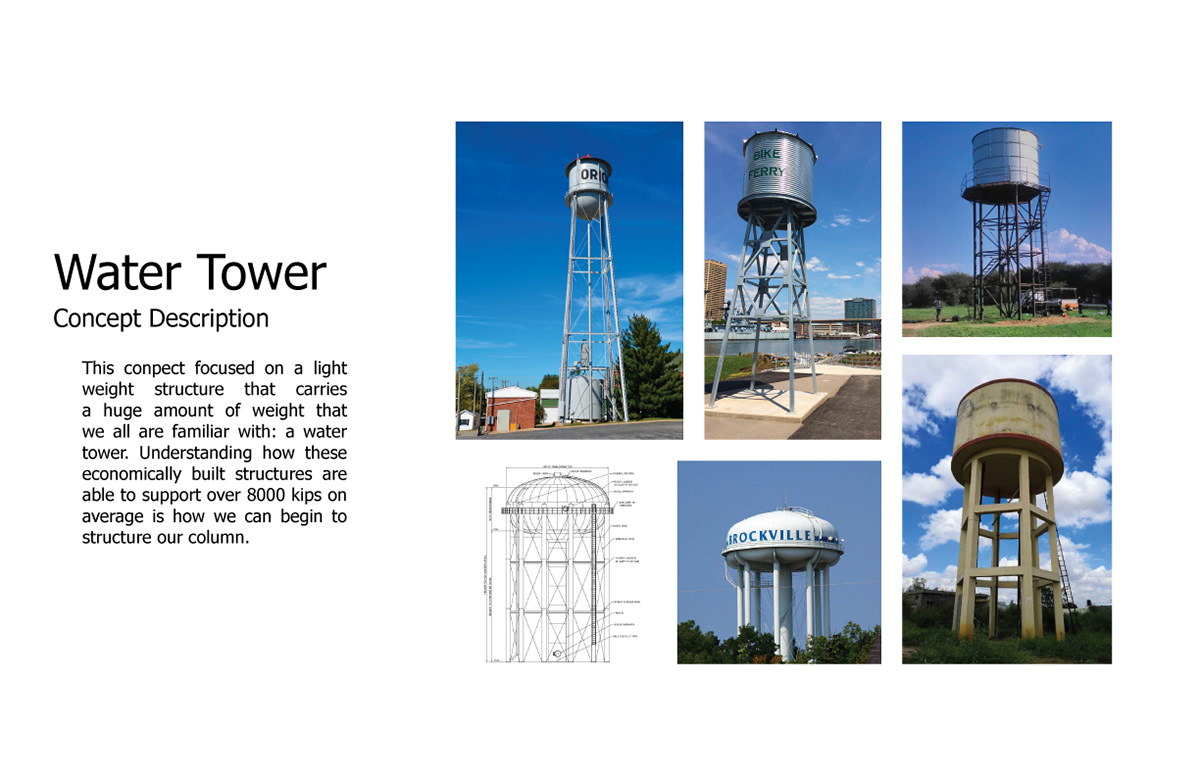

Concept Description

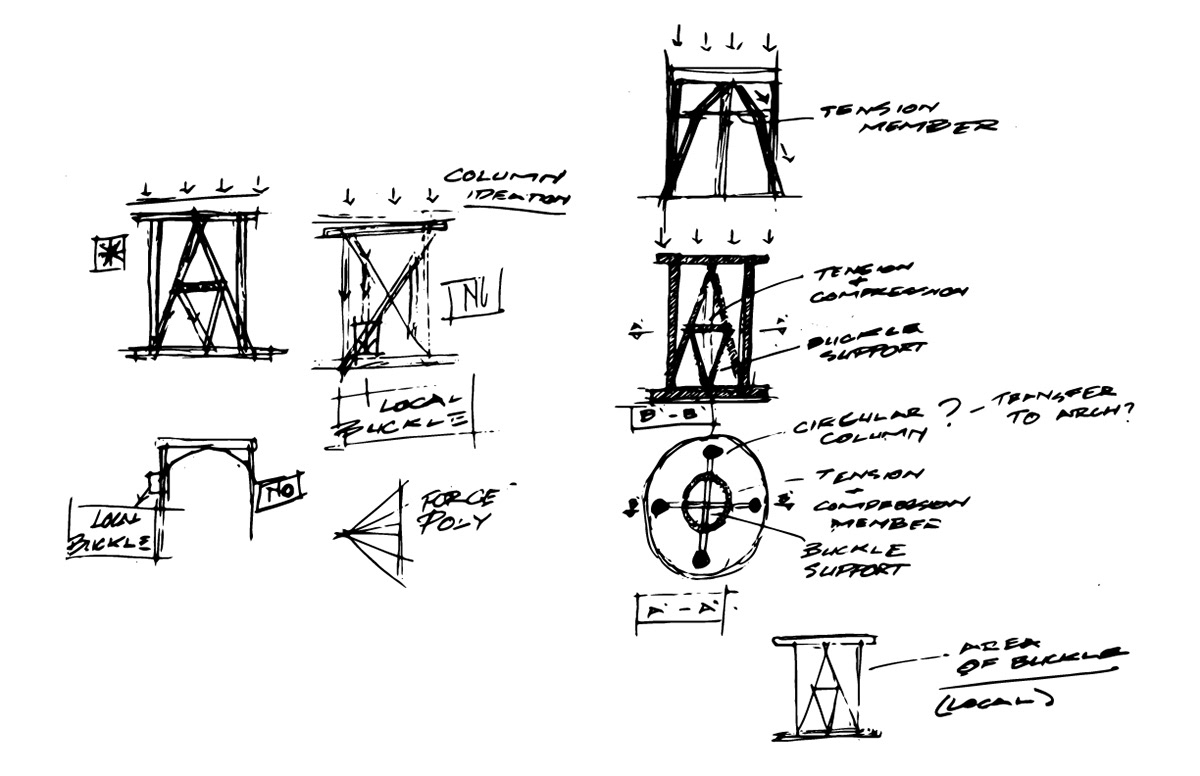

Sketch Ideation

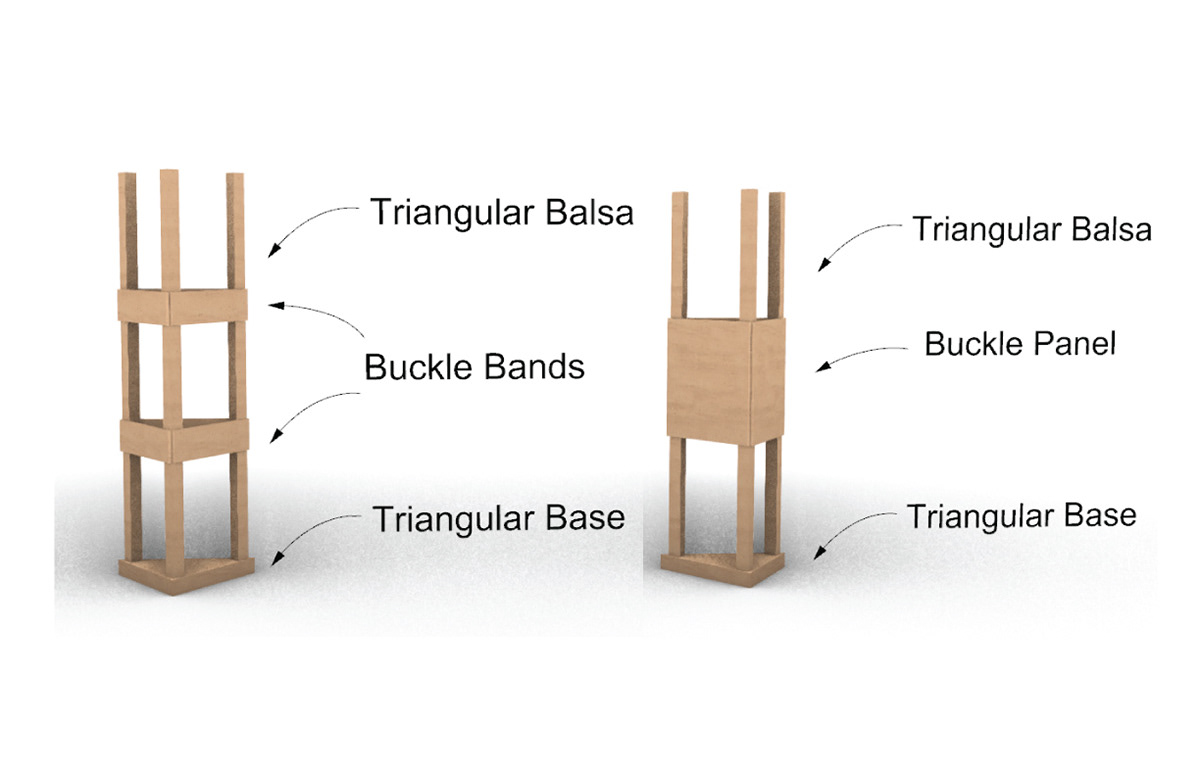

3D Modeling

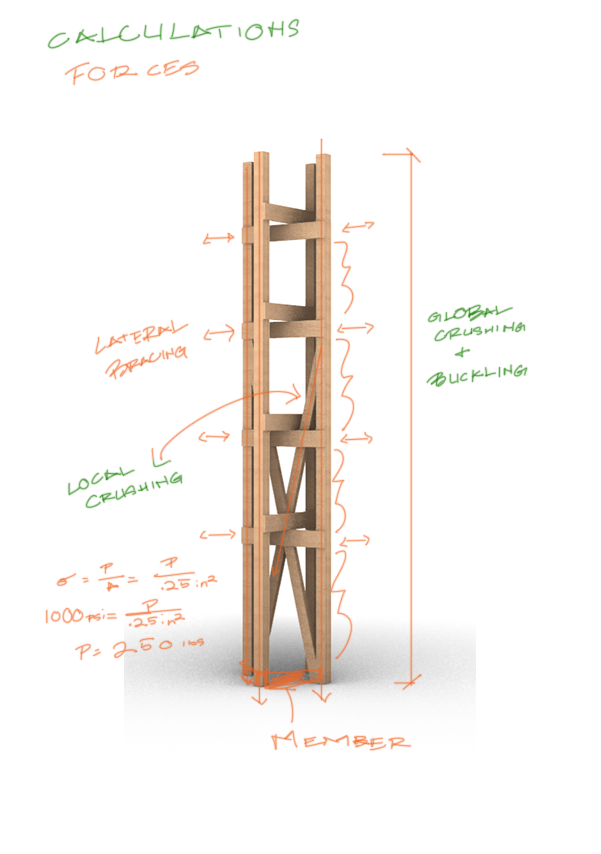

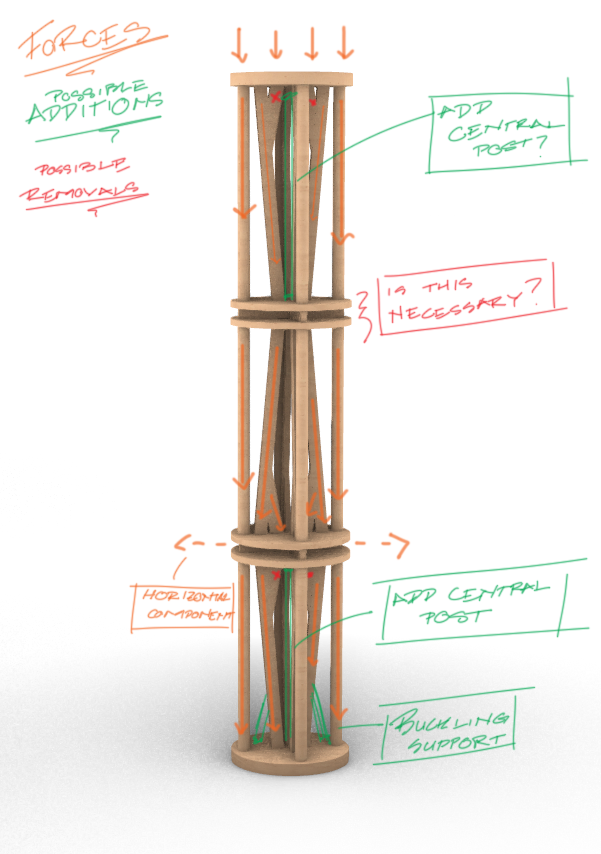

Force Visualization
New Iterations

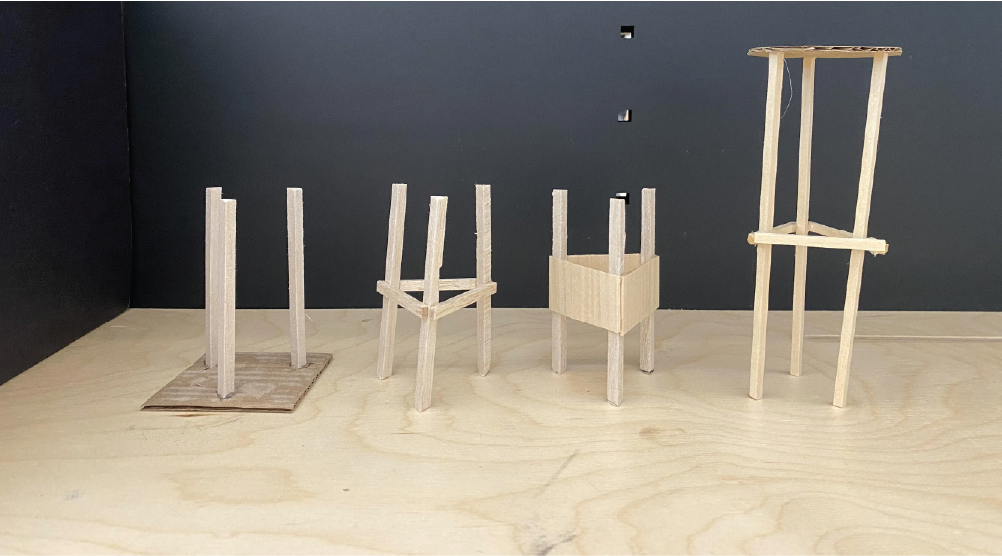

Study Models
Triangle Iterations
Design Finalization
Force Visulization

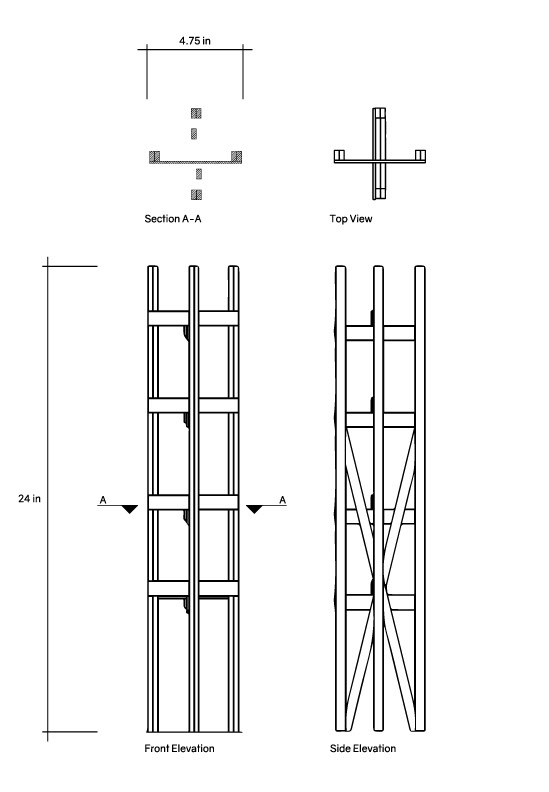

Orthographics
3D Model
3D Model

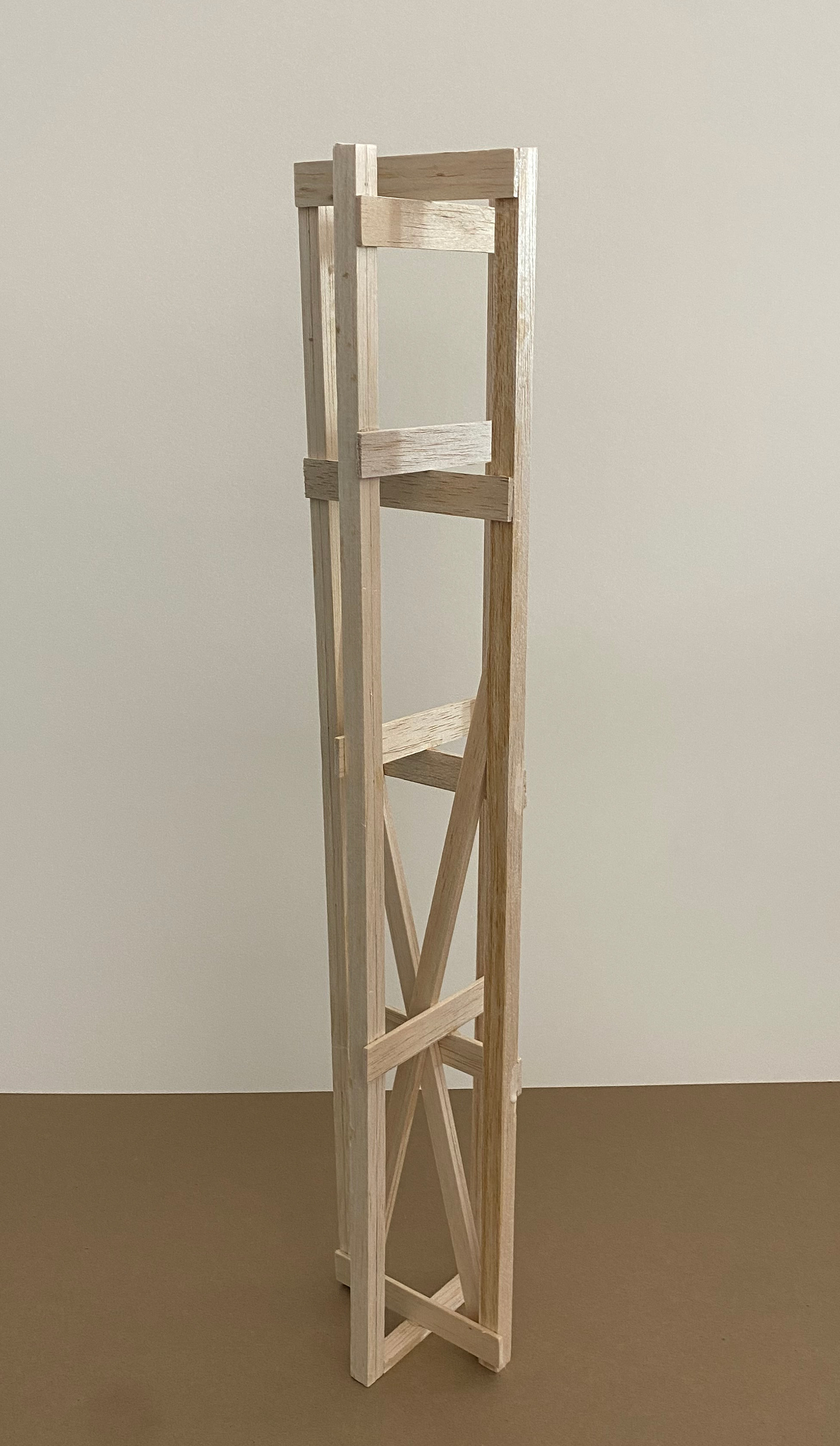

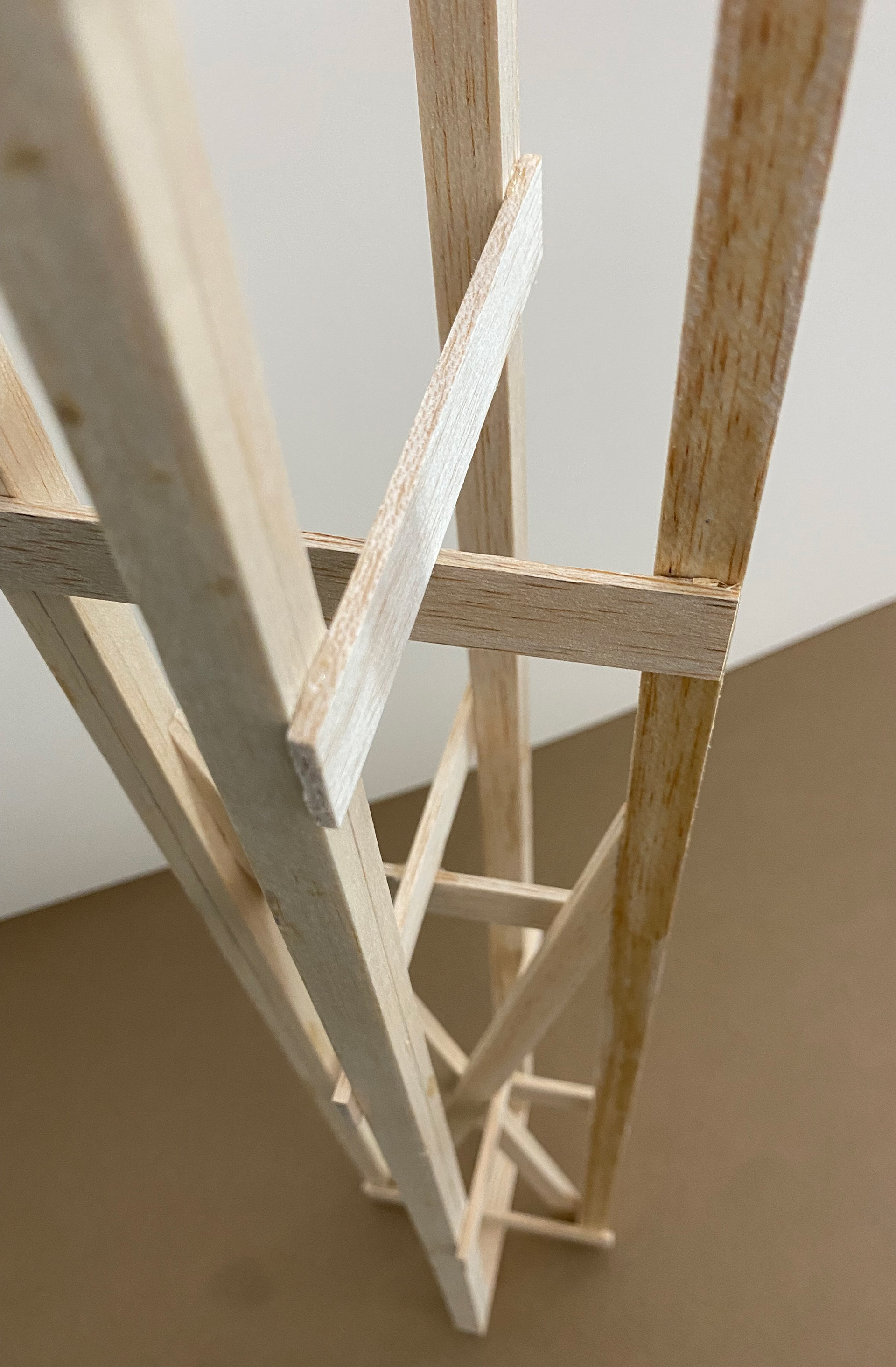

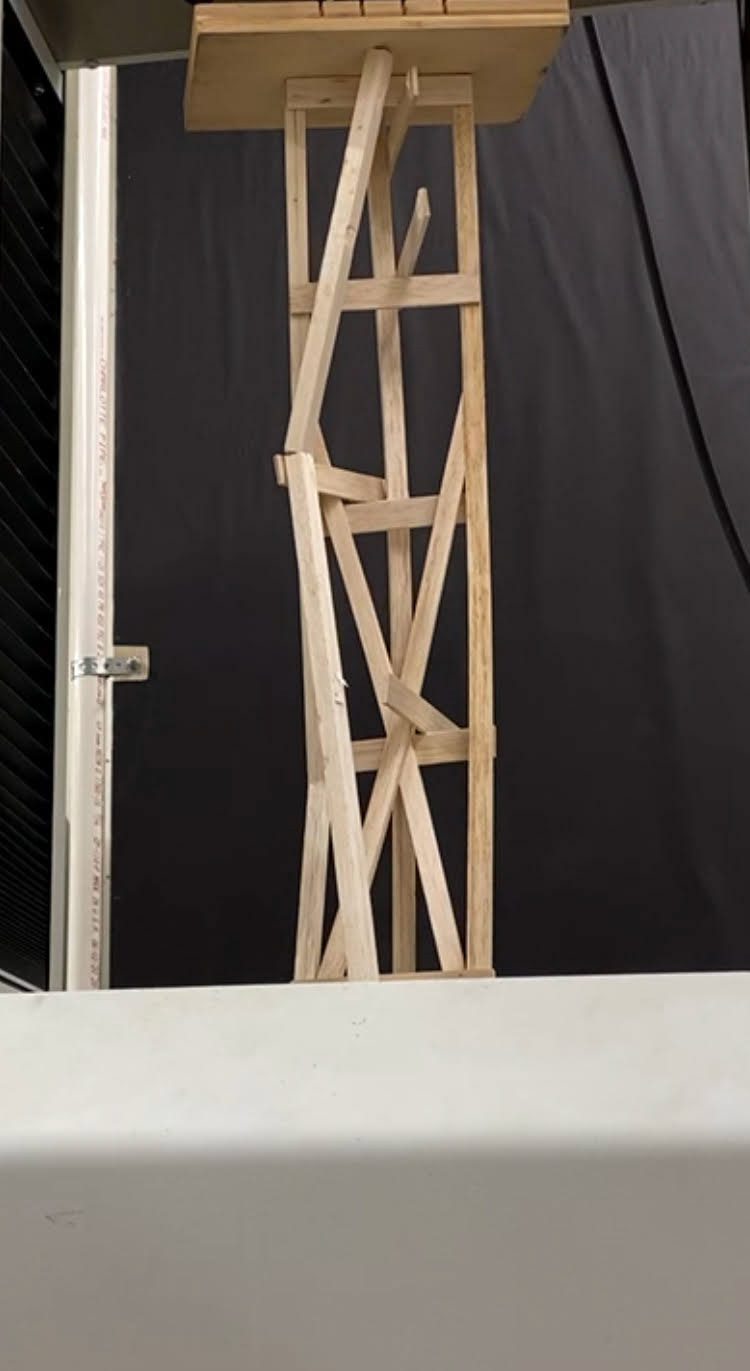

Final Construction
Final Construction
Detail View
